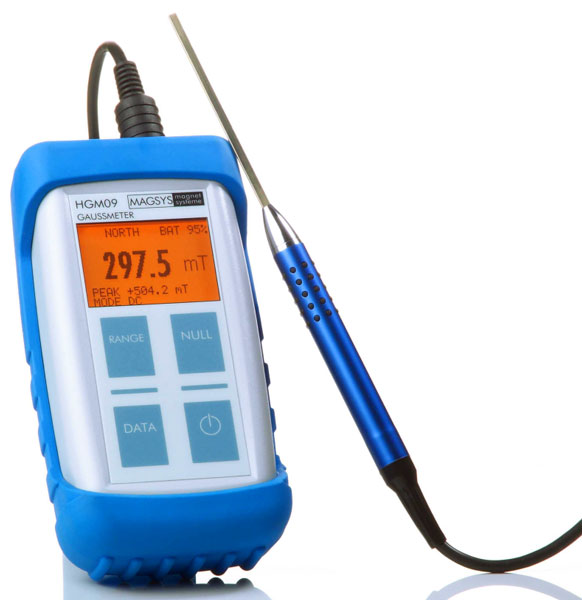

Hand Gaussmeter HGM09s with transversal probe

Complete functionality with only 4 push buttons. Data storage on a PC via keystroke. The HGM09s stands out due to simplest operation and a good price/performance ratio.

Application

The handheld gaussmeter HGM09s is used to measure magnetic DC and AC fields. The measurands are flux density in Tesla or Gauss and the field strength in Amps per meter.

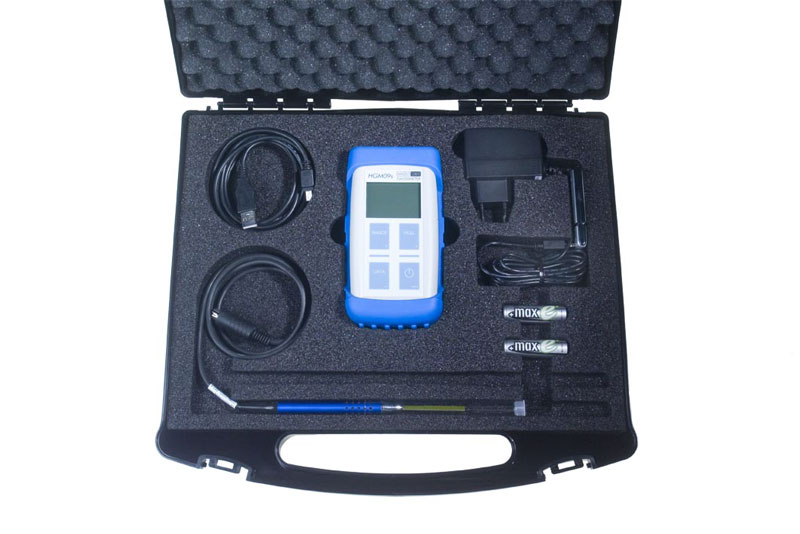

The HGM09s is supplied with rechargeable batteries and it is very handy to use as a portable device.

For stationary use it is equipped with a power supply unit and a USB cable (included in delivery) acting as additional battery charger.

However, it has a high measuring accuracy with several built-in features.

Function Description

The HGM09s is standardly equipped with a transversal probe. An axial probe and a thin transversal probe for the measurement inside small gaps are also available. All probes are equipped with EEPROMs for identification, parametrization and linearization.

The measuring range is up to 4.5 Tesla for the flux density and 3800 kA/m for the field strength respectively. The resolution is down to 1 µT or 1 A/m. With special high-field probes, the measuring range is extended to 10 Tesla and 8500 kA/m.

Further features are peak hold (positive and negative), linearity adjustment, null balance and battery condition indicator with energy-saving mode. The measuring values can easily be visualized and stored on the PC by pressing a key via the USB interface and a software package. Service and control functions are also available with the software.

Buy Online: $1,050.00

Quantity:

PLEASE NOTE: Lead time on Gauss Meters is two weeks.

Hand Gaussmeter HGM09s Specifications
Display: Graphics LCD (illuminated)
Units:
T(esla) G(auss), Oe(rsted) A(mps)/m(eter)
4.5 (10) T / 1 mT 45 (100) kG, kOe / 10 G, Oe 3800 (8500) / 1 kA/m
1 T / 100 µT 10 kG, kOe / 1 G, Oe 1000 kA/m / 100 A/m
100 mT / 10 µT 1 kG, kOe / 100 mG, mOe 100 kA/m / 10 A/m
10 mT / 1 µT 100 G, Oe / 10 mG, mOe 10 kA/m / 1 A/m
Accuracy: DC ±0.5 % up to 1.5 T and ±1 % from 1.5 T; Peak ±2 %; AC ±2 %
Frequency Range: DC / AC 0 Hz..5 kHz (r.m.s. value)
Peak Hold: t signal > 250 µs
Interface: USB; incl software for easy data storage on a PC (included in delivery)
Power Supply (included in delivery) Power Supply Unit 100..240 VAC, 50/60 Hz, 0.3 A max
USB Interface
Rechargeable Battery 2 x AA 1.2 V NiMH (exchangeable)
Temperature Range: -10°C .. +40°C (not bedewing)
Dimensions approx. 145 x 80 x 40 mm3
Weight
(incl Batteries, without Probe)
approx. 250 g
Measuring Probe Standard-Transversal Probe N (included in delivery):
Dimensions approx 3.4 x 1.35 x 45 mm3
(Special Probes and High-Field
Probes on request)
Axial Probe: Dimensions approx. 4.5 mm ø x 69 mm2

Transversal Probe S: Dimensions approx. 3.5 x 0.75 x 45 mm3

All Probes:
- Active area ø 0.15 mm
- Holder approx. 11 mm ø x 100mm
- Cable length: 1.5 m (Special lengths available)
- Integrated EEPROM
